JTM Bonnet Strut Kit to suit Isuzu D-MAX DMAX / MU-X 2021-05/2024
Make lifting your bonnet effortless with the JTM heavy-duty gas bonnet strut kit, designed specifically for the Isuzu D-MAX and MU-X (model years 2021 to May 2024). Engineered for both practicality and durability, this kit transforms your bonnet operation into a smooth, hands-free experience.
✅ Key Features:
-
Direct bolt-on installation – no drilling required
-
Designed for factory mounting points – vehicle-specific fitment
-
Allows slow and safe opening/closing of the bonnet
-
Gas struts engineered for daily and off-road use
-
Finished with electrostatic coating for superior corrosion resistance
🔧 Construction & Materials:
-
SUS 304 stainless steel shaft
-
QPQ-treated piston rods – increased wear and corrosion resistance
-
Heavy-duty steel tubes – electrostatically coated for long life
-
Protective dust boots – seals out water, dirt, and debris
📦 What's in the box:
-
2 × Heavy-Duty Gas Struts
-
2 × Custom Fitting Brackets
-
Installation Guide (if applicable)
Warranty: 2 Years – backed by JTM for peace of mind.
Upgrade your engine bay with confidence – the JTM Bonnet Strut Kit is the perfect balance of function, reliability, and ease of installation.
Bonnet Gas Strut Installation Guide
1. Remove the factory bonnet hinge bolts

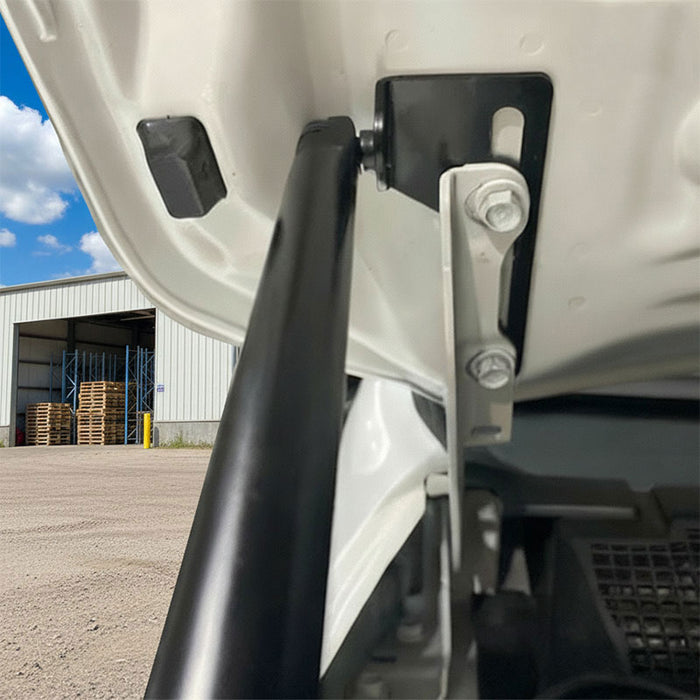

Carefully remove the factory bonnet hinge bolts. Have a second person support the bonnet to prevent it from falling or moving while the bolts are disconnected. Install the bonnet mounting brackets and secure them using the factory bolts.
2. Check bonnet alignment
Before fully tightening the bolts, ensure the bonnet is positioned in its original location. Check that the bonnet alignment and gaps are correct, then tighten all bolts securely.
3. Install the ball studs
Install the supplied ball studs into the factory mounting holes in the vehicle body. Secure each ball stud using the supplied nuts and washers.
4. Install the gas struts
Push the gas strut sockets firmly onto the ball studs until they are securely seated. Ensure the gas struts are installed in the correct orientation, as shown in the installation diagram.
5. Repeat on the opposite side
Repeat the installation process on the opposite side of the bonnet. Check that all brackets, ball studs, and bolts are correctly installed and securely tightened before operating the bonnet.
