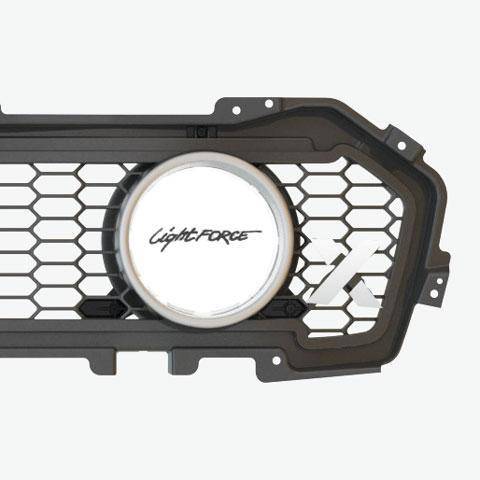

Lightforce X Grille for Ford Ranger PX2 with Integrated Lightforce Venom LED Driving Lights

SKU IG150RKIT
Original price $1,050.00 - Original price $1,050.00
Original price
$1,050.00
$1,050.00 - $1,050.00
Current price $1,050.00
The X Grille is the result of a collaboration between leading Australian manufacturers Lightforce and AX4, the aftermarket automotive equipment division of Axiom Precision Manufacturing.
The two companies have a long history of partnership, with Axiom being a long-standing supplier to Lightforce. The X Grille’s inspiration comes from a very different sector of the car market: the Shelby GT Mustang from 1967.
Sleek and muscular, it’s an aesthetic that translates surprisingly well to today’s superutes.

ENHANCED X GRILLE FEATURES

  • Reinforced, UV stable glass-filled nylon
  • High strength and shock-resistant
  • Vehicle collision avoidance compliant
  • Sleek, modern and innovative
  • Bright chrome trim
  • Weight: 1kg/2.2lb

VENOM INSERT LED FEATURES

  • 75W LED / 7850lm (raw) / 4407m (effective) for industry-leading output per light
  • 21 Lumileds LEDs per light operate at 5000K colour temperature reducing driver fatigue
  • CE Certified
  • Vertical and horizontal beam adjustment provides optimal alignment
  • IP68 & IP69K rated / Gore water-proof membrane to protect against water and dust ingress
  • Reverse polarity / overload protection
  • Colour temperature: 5000K
  • LED lifespan: 50,000 hours
  • Operating temperature: -40C to 63C

KIT INCLUSIONS

1 x X Grille for Ford Ranger PX2 models
2 x Integrated Lightforce Venom LEDs with clear spot filters
1 x Full plug-and-play wiring harness & switch
1 x Dedicated plug-and-play headlight patch harness
1 x Installation instructions.

The X Grille kit contains a wiring harness, switch and connectors – everything needed for a seamless fit. The instructional video below provides a step-by-step guide, making installation a straightforward DIY job. Alternatively, owners can choose to have the X Grille professionally installed, a process that takes under two hours.

Please note this is not compatible with the PX3 models.

X-Grille Venom Inserts Diagram

RELIABILITY

Venom LED is filled with innovations and certifications such as IP68 and IP69K. This means every light has the ability to withstand dust and water ingress. Compliment these features with a UV stable powder coat finish and 3 year Lightforce warranty, nothing packs more punch in a compact size than the Venom LED.

X Grille for Ford Ranger

SPECIFICATIONS

Globe Type LED
Distance: 1 lux at 850m
Distance: 0.25 lux at 1700m
Effective Lumens 4407
Raw Lumens 7850
Colour Temperature 5000K
CRI 70
Current Draw 5.7Amps @ 13.2V
Voltage Range 12V|24V
Wattage 75W
Ingress Protection Rating IP68 and IP69K
Diameter 150mm
Weight 3kg
