Pair Roadvision Dynamilux RDL7800 Series 8” LED Driving Lights + Wiring Harnesses
SKU RDL7800C-RDWKD
by Roadvision
Save 10%
Original price
$997.00
Original price
$997.00
-
Original price
$997.00
Original price
$997.00
Current price
$899.00
$899.00
-
$899.00
Current price
$899.00

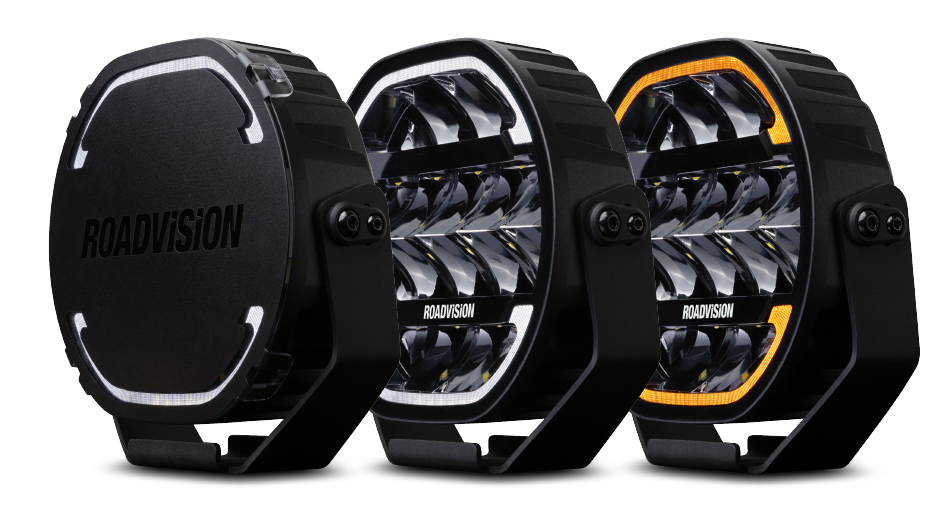

Illuminate the Road Ahead with Roadvision Dynamilux Series 8” LED Driving Lights
Upgrade your vehicle with the perfect fusion of style, durability, and raw performance. The Roadvision Dynamilux Series 8” LED Driving Lights feature a dual-color dynamic start-up DRL that delivers a modern aesthetic while boosting daytime visibility. Engineered for the toughest conditions, this pair throws a crisp 5700K combination beam reaching an impressive 1LX @ 834 meters for exceptional nighttime clarity.
Note: Sold as a pair (includes 2 x LED Driving Lights) + A Set of Wiring Harnesses
LED Driving Lights:
- RDL7800 Series 8” Driving Light

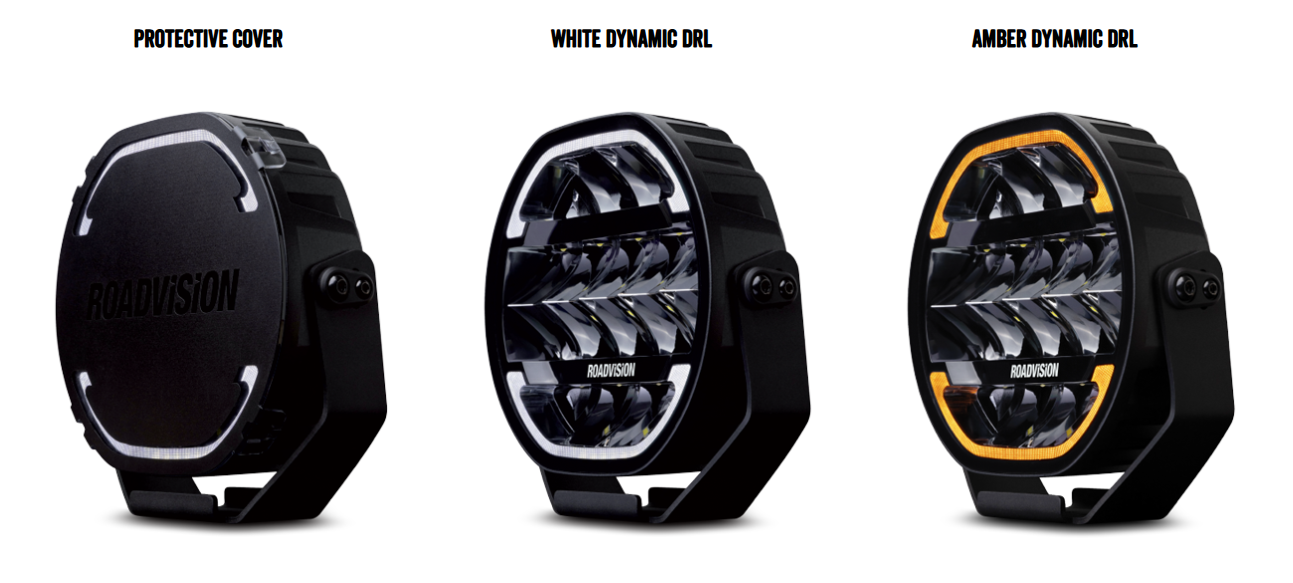

- Amber or White Dynamic start-up DRL
- Blackout mounting hardware
- Includes Black cover with DRL windows
- 18 x 10W Osram LED’s with a crisp 5700K colour temperature
- 1LX @ 834 metres per pair
- Multi-volt 10-30V DC input & low current draw
- 50,000 hour LED lifespan with solid state technology
- Thermal Management Technology
- Lightweight tough die-cast aluminium housing & polycarbonate lens
- Water & dust proof IP67 rated
- Over/under voltage, reverse polarity protection
- EMI/EMC radio interference approved
| Part Number | RDL7800C |
|---|---|
| Description | 8” LED Driving Light 10-30V 180W Combination Beam |
| Beam Pattern | Combination |
| Maximum Lumens per Light (pair) | 9,900lm (19,800lm) |
| Lux @ 10m per Light (pair) | 3,480lx (6,960lx) |

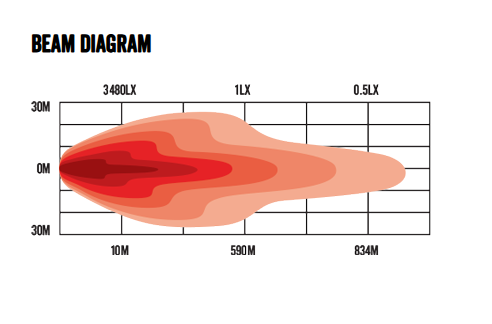

| Beam Distance @ 1lx per Light (pair) | 590m (834m) |
| Beam Distance @ 0.5LX per Light (pair) | 834m (1,180m) |
| Input Voltage | 10-30VDC |
| Maximum Watts | 180W |
| Number of LEDS | 18 x 10W Osram |
| Current Draw @ 13.8V | 10.2 Amps |
| Lens Construction | Polycarbonate |
| Housing Construction | Die-Cast Aluminium |
| Wiring | 4 Pin Deutsch Plug Red – Positive Black – Negative Yellow – Amber DRL White – White DRL |
| Dimensions AxBxC | 220 x 80 x 229mm |

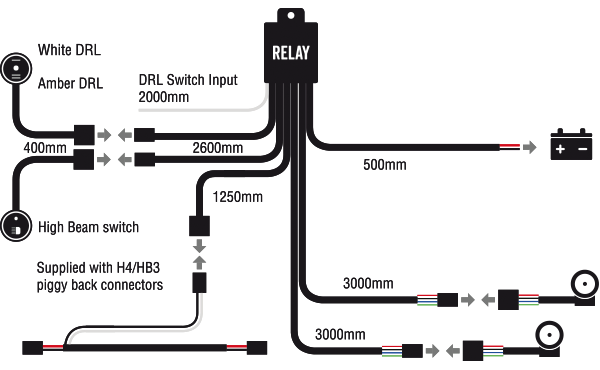

Wiring Harnesses
RDWKD
Universal Driving Light Wiring Harness with Dual Coloured DRL
- 2 x 4 Pin Deutsch Connectors

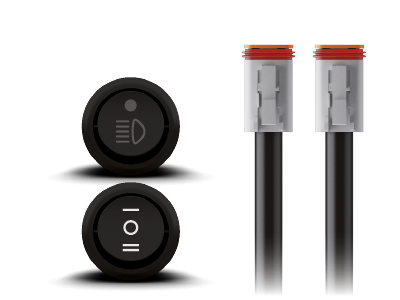

- Driving Lamp Rocker Switch & DRL Rocker Switch
- Suits Pair of Driving Lights
